Heating & Cooling - Vido

The Vido is the first in a new generation of intelligent fan convectors. It has been designed specifically to combine all the traditional advantages of a fan convector with a range of new product features made possible by our latest energy efficient heating technology.





  • High outputs : in heating up to 9266 Watt and in cooling : 4147 Watt
  • Compact in size : height : 600 mm & length : 800, 1000, 1200, 1400 and 1600 mm
  • Operation at low water temps = renewables
  • Rapid response because of low water content
  • Water connection : 2 or 4 x Ø 3/4” and 1 electric connection
  • Electronic control system with LCD display
  • Decorative design with a flat front panel and slightly curved sides
  • Robust one piece casing - steel in RAL 9016
  • Low fan sound level
  • Easy to install with delivered brackets
  • Accessories : Condensate pump kit, connection and adjustment sets & filter
  • The 2-pipe Vido has 1 heat exchanger
  • The 4-pipe Vido has 2 heat exchangers, one for heating and one for cooling. This means that each heat exchanger has its own set of flow and return pipes, one from a boiler and one from a chiller. Critically this means, from a system design point of view, that if a system has multiple Vido installed some can be used for heating whilst others can be used for cooling at the same time.

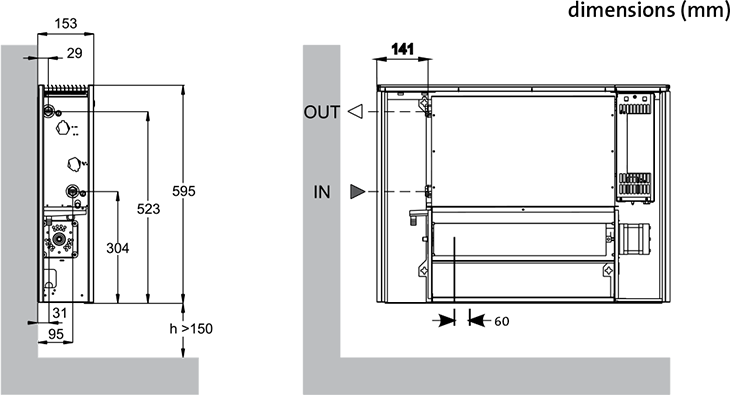

VIDO - 2-PIPE UNIT



type height (mm) length (mm)
VID26000800 600 800
VID26001000 600 1000
VID26001200 600 1200
VID26001400 600 1400
VID26001600 600 1600





VIDO - 4-PIPE UNIT



type height (mm) length (mm)
VID46000800 600 800
VID46001000 600 1000
VID46001200 600 1200
VID46001400 600 1400
VID46001600 600 1600



VIDO - 2-PIPE UNIT

weight (kg), water content (l) & motor power (Watt)

type weight net water content motor power
VID26000800 22,80 0,66 32
VID26001000 27,70 0,92 35
VID26001200 32,50 1,19 44
VID26001400 37,50 1,45 53
VID26001600 42,60 1,72 65





VIDO - 4-PIPE UNIT

weight (kg), water content (l) & motor power (Watt)

type weight net water content motor power
heating cooling
VID46000800 24,80 0,33 0,66 32
VID46001000 30,10 0,46 0,92 35
VID46001200 35,30 0,60 1,19 44
VID46001400 40,70 0,73 1,45 53
VID46001600 46,20 0,86 1,72 65

VIDO - 2-PIPE UNIT



sound level

type normal medium boost
VID26000800 24,80 37,70 47,90
VID26001000 27,00 35,80 47,90
VID26001200 24,00 40,50 51,70
VID26001400 24,90 35,50 54,80
VID26001600 27,00 35,00 56,30
Sound levels in dB(A) (2,5m) tested in accordance with ISO 3741.



Water flow rates (l/h) & pressure losses (kPa) - heating /cooling

water flow pressure loss (kPa)
100 150 220 330 500 750
VID26000800 0,70 1,40 2,90 6,10 13,00 27,50
VID26001000 1,00 2,10 4,10 8,50 17,80 36,50
VID26001200 1,40 2,90 5,50 11,10 22,90 46,20
VID26001400 1,60 3,20 6,10 12,20 24,90 49,80
VID26001600 1,90 3,70 7,10 14,20 28,70 57,10



air flow rates (m3/h)

air flow heating cooling
normal boost boost normal medium boost
VID26000800 90 148 247 65 110 202
VID26001000 135 221 370 98 165 302
VID26001200 180 295 493 130 220 403
VID26001400 225 369 616 163 275 504
VID26001600 270 443 740 195 330 605



VIDO - 2-PIPE UNIT



sound level

type normal medium boost
VID46000800 24,80 37,70 47,90
VID46000800 27,00 35,80 47,90
VID46001200 24,00 40,50 51,70
VID46001400 24,90 35,50 54,80
VID46001600 27,00 35,00 56,30
Sound levels in dB(A) (2,5m) tested in accordance with ISO 3741.



air flow rates (m3/h)

type heating cooling
normal medium boost normal medium boost
VID46000800 90 148 247 65 110 202
VID46000800 135 221 370 98 165 302
VID46001200 180 295 493 130 220 403
VID46001400 225 369 616 163 275 504
VID46001600 270 443 740 195 330 605
Sound levels in dB(A) (2,5m) tested in accordance with ISO 3741.



Water flow rates (l/h) & pressure losses (kPa) - cooling

water flow pressure loss
100 150 220 330 500 750
VID46000800 0,70 1,40 2,90 6,10 13,00 27,50
VID46001000 1,00 2,10 4,10 8,50 17,80 36,50
VID46001200 1,40 2,90 5,50 11,10 22,90 46,20
VID46001400 1,60 3,20 6,10 12,20 24,90 49,80
VID46001600 1,90 3,70 7,10 14,20 28,70 57,10



Water flow rates (l/h) & pressure losses (kPa) - heating

water flow pressure loss
100 150 220 330 500
VID46000800 0,70 1,40 2,90 6,10 13,00
VID46001000 1,00 2,10 4,10 8,50 17,80
VID46001200 1,40 2,90 5,50 11,10 22,90
VID46001400 1,60 3,20 6,10 12,20 24,90
VID46001600 1,90 3,70 7,10 14,20 28,70

VIDO - 2-PIPE UNIT



fan speed heat outputs (Watt) outputs cooling (Watt)
water flow (l/h) 75/65/20°C 45/35/20°C total sensible
VID26000800 normal 341 1997 1146 707 527
medium 341 2678 1537 1126 829
boost 341 3682 2113 1648 1227
VID26001000 normal 450 2739 1572 1011 1753
medium 450 3661 2101 1600 1178
boost 450 5124 2941 2304 1716
VID26001200 normal 600 3288 1887 1520 931
medium 600 4448 2553 1960 1442
boost 600 6521 3743 2918 2173
VID26001400 normal 700 3867 2219 1490 1110
medium 700 5265 3022 2320 1707
boost 700 7894 4531 3533 2631
VID26001600 normal 800 4460 2560 1729 1288
medium 800 6082 3491 2679 1972
boost 800 9266 5318 4147 3088
Relative humidity: sensible cooling at 50%



VIDO - 4-PIPE UNIT



fan speed heat outputs (Watt) outputs cooling (Watt)
water flow (l/h) 75/65/20°C 45/35/20°C water flow (l/h) total sensible
VID46000800 normal 300 1398 802 350 672 501
medium 300 1875 1076 350 1070 788
boost 300 2577 1479 350 1566 1166
VID46001000 normaal 350 1917 1100 450 960 715
medium 350 2563 1471 450 1520 1119
boost 350 3587 2059 450 2189 1630
VID46001200 normal 400 2302 1321 600 1444 884
medium 400 3114 1787 600 1862 1370
boost 400 4565 2620 600 2772 2064
VID46001400 normal 450 2707 1553 700 1416 1055
medium 450 3686 2115 700 2204 1622
boost 450 5526 3172 700 3356 2499
VID46001600 normal 500 3122 1792 800 1643 1224
medium 500 4257 2444 800 2545 1873
boost 500 6486 3723 800 3940 2934
Relative humidity: sensible cooling at 50%
  • Electronic control system for a wide range of easy to use heating and cooling operating options
  • Lockable LCD backlit display
  • Individually programmable
  • 24/7 programmer with 1 hour time periods
  • Night set-back function
  • Easy mode for basic operation & full mode for more advanced functions
  • 3 fan speeds : normal, medium and boost
  • The control system will automatically select and vary the fan speeds as required, depending on the current room temperature and the required, set room temperature
  • Option to link to a building management system (BMS)

If no direct, lower condensation drainage is available, a condensation pump can be mounted and connected.



Connection and adjustment sets

Pressure-compensated connection and adjustments sets with 230V power. These sets ensure that the flow in the unit remains at the desired level.

2-pipe : VID2VALVE
4-pipe : VID4VALVE



Filter

filter 400 mm : VIDFIL400
filter 495 mm : VIDFIL495
filter 695 mm : VIDFIL695

Following filters need to be ordered per model:

Vido 600x800  : VIDFIL495
Vido 600x1000 : VIDFIL695
Vido 600x1200 : VIDFIL400 + VIDFIL495
Vido 600x1400 : VIDFIL400 + VIDFIL695
Vido 600x1600 : VIDFIL400 + VIDFIL400 + VIDFIL495

Brochure VIDO

PDF: 2.73 MB

Download

See online

Pricelist - Vido

PDF: 1.87 MB

Download

See online

Vido - Getting started

PDF: 0.29 MB

Download

See online

Vido - Manual

PDF: 7.92 MB

Download

See online

Radson offers a guarantee of 5 years on the Vido (electric parts : 2 years).
