Kupaonski radijatori - Flores C

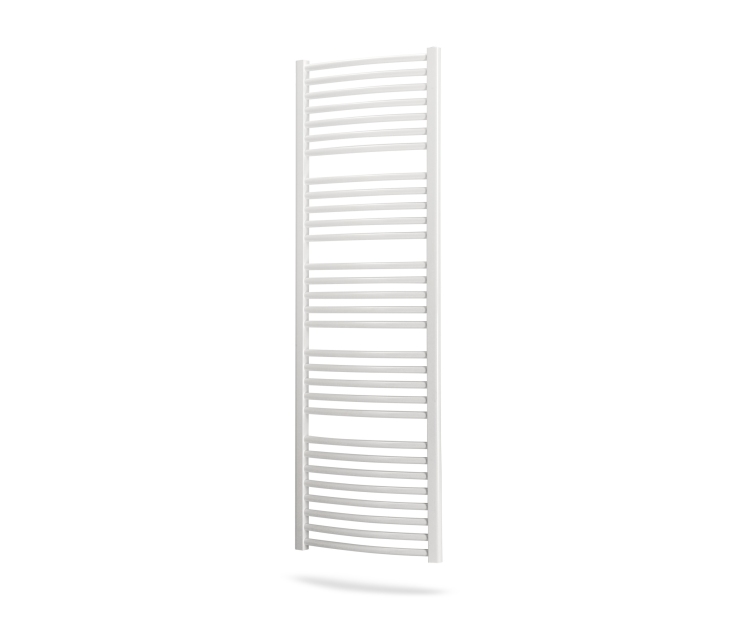

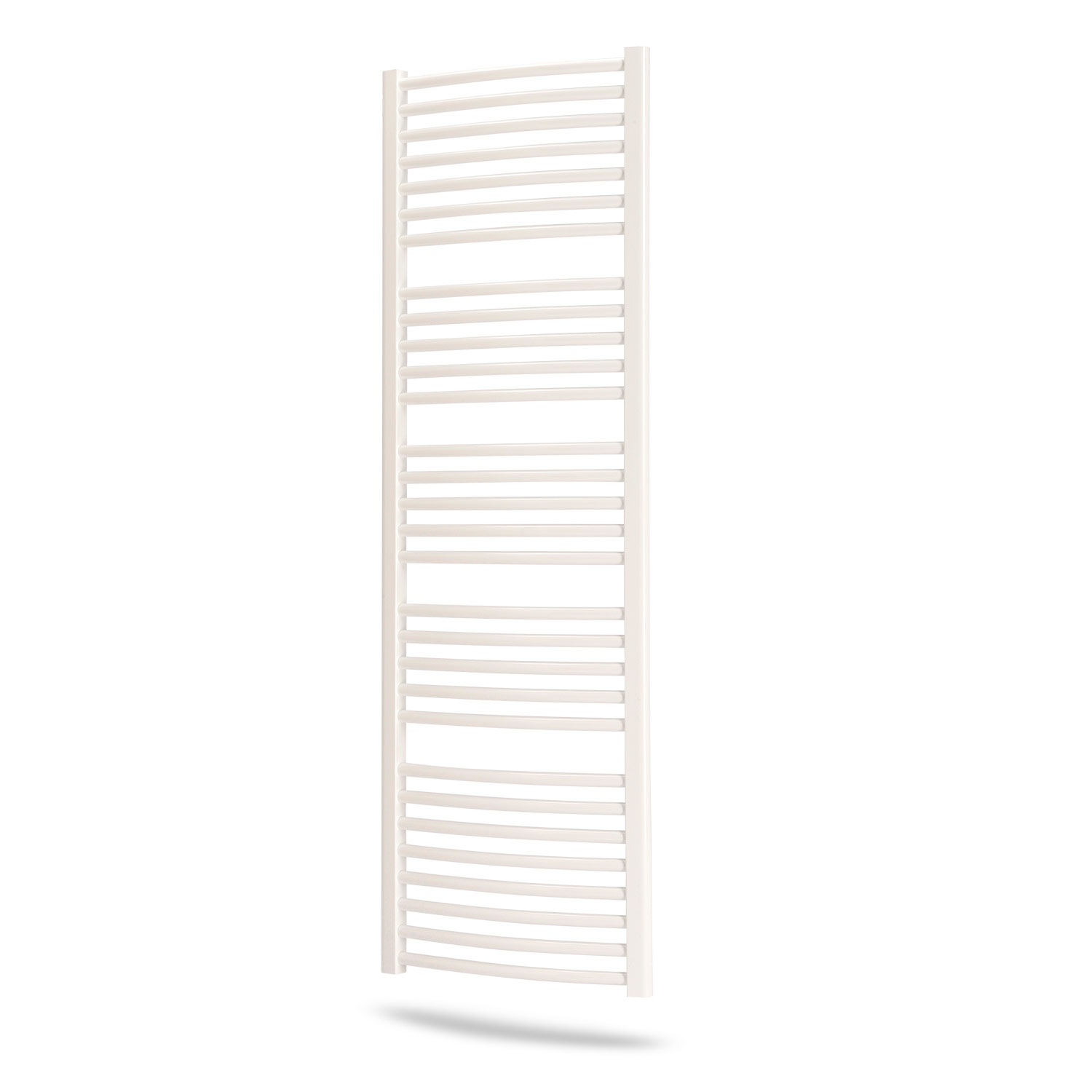

This curved version of the Flores model has fine round integrated pipes in its collectors.

Information:

Height (mm) 547 - 862 - 1222 - 1537 - 1807
Length (mm) 500 - 600 - 750
Connections 2 x diameter 1/2" (15/21)

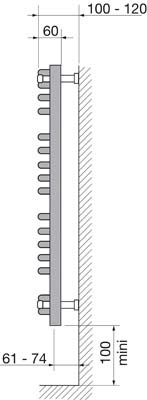

Installation 4 adjustable hanging brackets to block between the pipes.
Accessories Brackets, 1 blind stop, 1 airvent, screws and plugs.
Packaging The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee 10 Year

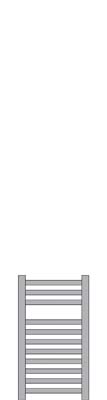

1. FLC0505 / FLC0505M (Mid Connection)

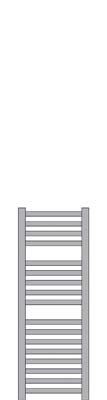

2. FLC0508 / FLC0508M (Mid Connection) / FLC0508CH (Chrome)

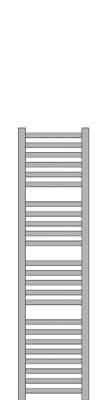

3. FLC..12 / FLC..12M (Mid Connection) / FLC0512CH (Chrome)

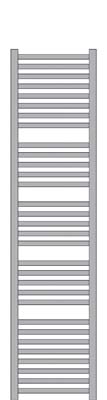

4. FLC..15 / FLC..15M (Mid Connection) / FLC0615CH (Chrome)

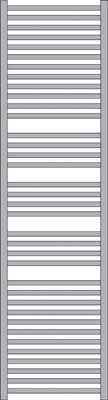

5. FLC..18 / FLC..18M (Mid Connection) / FLC..18CH (Chrome)




1.2.3.4.5.




Flores C

Length Height Centre-to-centre
connections
Weight Volume 75/65/20
500 547 450 4,10 2,60 265
500 862 450 6,20 3,90 421
500 1222 450 8,80 6,10 587
600 1222 550 11,30 6,80 689
750 1222 700 13,50 8,10 843
500 1537 450 12,40 7,40 726
600 1537 550 12,70 8,60 856
750 1537 700 15,30 10,20 1051
500 1807 450 13,10 8,80 862
600 1807 550 14,90 10,10 1022
750 1807 700 17,60 12,00 1261

Flores C Chrome

Length Height Centre-to-centre
connections
Weight Volume 75/65/20
500 862 450 6,10 3,90 286
500 1222 450 8,60 6,10 395
600 1537 550 11,80 8,60 585
600 1807 550 15,50 10,10 715
750 1807 700 17,60 12,00 881

Flores C Mid Connection

Length Height Centre-to-centre
connections
Weight Volume 75/65/20
500 547 50 4,10 2,60 265
500 862 50 6,20 3,90 421
500 1222 50 8,80 6,10 587
600 1222 50 11,30 6,80 689
750 1222 50 13,50 8,10 843
500 1537 50 12,40 7,40 726
600 1537 50 12,70 8,60 856
750 1537 50 15,30 10,20 1051
500 1807 50 13,10 8,80 862
600 1807 50 14,90 10,10 1022
750 1807 50 17,60 12,00 1261

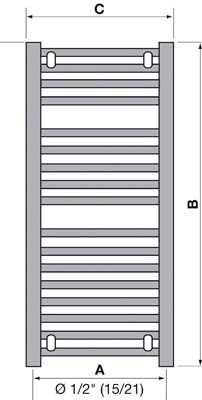

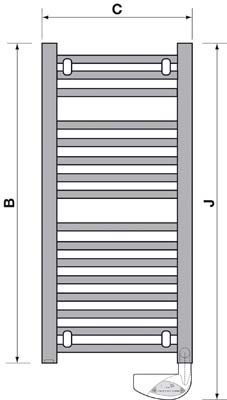

A = Centre-to-centre connection
B = Height
C = Length



Top View




Mid Connections

[

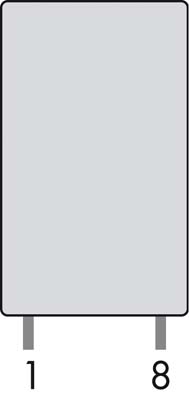

Connections





Connections



Supply and return always at the bottom, can be switched left/right

Diameter connections : supply and return Ø ½” (15/21)

Working pressure : 8 bar

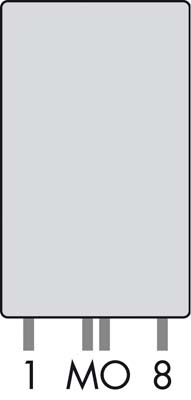

Mid Connection

Connections





Connections



Diameter connections : supply and return Ø ½” (15/21)

Working pressure : 8 bar



Chrome

Connections



Connections



Supply and return always at the bottom, can be switched

Diameter connections : supply en return Ø ½” (15/21)

Working pressure : 8 bar















V-HANGKNOPPEN

set 2 stuks

wit, PATVRBL, 13,39 €
chroom, PATVRCH, 13,39 €



HANDDOEKRING



wit, ANORBL, 35,02 €
chroom, ANORCH, 35,02 €





RONDE HANGKNOPPEN

set 2 stuks

wit, PATRBL, 13,39 €
chroom, PATRCH, 13,39 €



HANDDOEKDRAGER
gebogen 370 mm

lengte radiator
min. 500 mm

wit, BARR40CBL, 30,90 €
chroom, BARR40CCH, 30,90 €



HANDDOEKDRAGER
gebogen 470 mm

lengte radiator
min. 600 mm

wit, BARR50CBL, 35,02 €
chroom, BARR50CCH, 35,02 €



Our radiators are guaranteed for a period of 10 years against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. This guarantee does not apply to defects caused by installation errors or factors external to the radiators (water quality, oxygen-premeable pipes,…). In the event of raw materials defects or manufacture defects recognised by the N.V. RADSON, the buyer will be entitled only to demand repair or replacement of the defective parts. It is explicitly agreed that the N.V. RADSON is not obliged to any damages, either for personal accidents or for damage to other goods or for loss of profit.

Our 10 year warranty is only valid for purchases done since January 1, 2007.
