Kupaonski radijatori - Java

Inclined, ellipse-shaped heat elements provide an airy dimension to the design.

Information:

Height (mm) 700 - 912 - 1336 - 1548 - 1760 - 1972
Length (mm) 400 - 500 - 600
Connections 2 x diameter 1/2" (15/21)
Installation 4 welded-on hanging strips for 4 adjustable wall brackets.
Accessories Brackets, 1 blind stop, 1 airvent.
Packaging The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee 10 Years

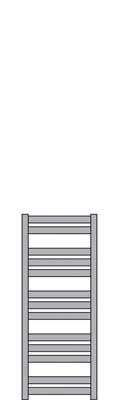

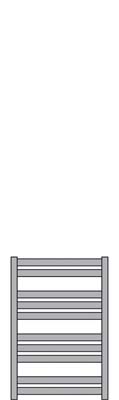

         JA0507                  JA..09                  JA..13

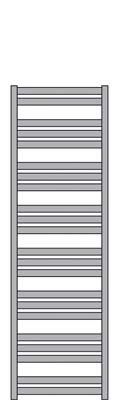

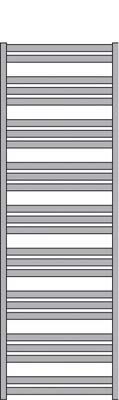

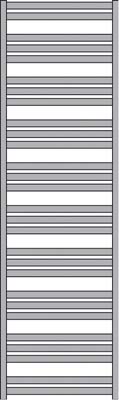

       JA0515                  JA0617                     JA0619

Length Height Centre-to-centre
connections
Weight Volume 75/65/20
500 700 470 5,50 3,30 358
400 912 370 6,80 3,70 393
500 912 470 7,80 4,30 463
400 1336 370 11,40 5,60 568
500 1336 470 13,20 6,30 668
500 1548 470 15,30 7,20 780
600 1760 570 19,40 9,40 1015
600 1972 570 21,50 10,30 1137





A = centre-to-centre connections
B = Height
C = Length
D = centre-to-centre connections Hori
X = centre-to-centre connections VERTI

Connections



supply and return always at the bottom, can be switched left/right

Diameter connections : supply and return Ø ½” (15/21)

Working pressure : 8 bar

Momenteel zijn er geen accessoires specifiek voor 'Java' beschikbaar. De meer algemene accessoires vindt u terug bij het item ‘Accessoires’ in het menu ‘Producten’.

Our radiators are guaranteed for a period of 10 years against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. This guarantee does not apply to defects caused by installation errors or factors external to the radiators (water quality, oxygen-premeable pipes,…). In the event of raw materials defects or manufacture defects recognised by the N.V. RADSON, the buyer will be entitled only to demand repair or replacement of the defective parts. It is explicitly agreed that the N.V. RADSON is not obliged to any damages, either for personal accidents or for damage to other goods or for loss of profit.

Our 10 year warranty is only valid for purchases done since January 1, 2007.
