Horizontal design radiators

Narbonne H

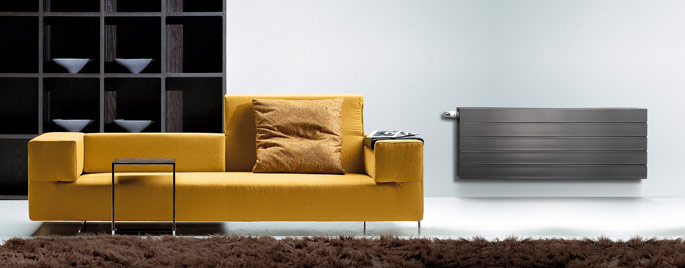

Horizontal design radiators - Narbonne H

A discrete design radiator with rounded edges. Horizontal installation of the flat heating elements.

+
Heights (mm) 358 mm (5 elements), 502 mm (7), 646 mm (9) and 790 mm (11)
Lenghts (mm) 500 mm  up to and including 3000 mm
Connections 2 G ½" IG on the side. For the version with the valve body included : 2 G 3/4" AG underneath.
Installation Welded-on hanging strips on the back side of the radiator for adjustable wall brackets.
Accessories The blind stop and rotating airvent are already mounted in the radiator.
Packaging The radiators are protected with cardboard. The whole package is shrink-wrapped.
Guarantee Radson offers a 10-year guarantee of quality on its entire selection of radiators andfloor-heating systems!
Types 11, 21 and 22

Content : Radiator types

Type 11

Type 21

Type 22

Heat outputs and dimensions

  Height 358 mm (5 el) 502 mm (7 el) 646 mm (9 el) 790 mm (11 el)
  Type 11 21 22 11 21 22 11 21 22 11 21 22
Length Watt   952     1210     1445     1662
500 75/65/20 334 476 599 423 605 737 495 723 850 553 831 943
600 75/65/20 400 571 718 507 726 884 593 867 1019 663 997 1132
700 75/65/20 467 666 838 592 847 1032 692 1012 1189 774 1163 1320
800 75/65/20 534 762 958 676 968 1179 791 1156 1359 884 1330 1509
900 75/65/20 600 857 1077 761 1089 1327 890 1301 1529 995 1496 1697
1000 75/65/20 667 952 1197 845 1210 1474 989 1445 1699 1105 1662 1886
1200 75/65/20 800 1142 1436 1014 1452 1769 1187 1734 2039 1326 1994 2263
1400 75/65/20 934 1333 1676 1183 1694 2064 1385 2023 2379 1547 2327 2640
1600 75/65/20 1067 1523 1915 1352 1936 2358 1582 2312 2718 1768 2659 3018
1800 75/65/20 1201 1714 2155 1521 2178 2653 1780 2601 3058 1989 2992 3395
2000 75/65/20 1334 1904 2394 1690 2420 2948 1978 2890 3398 2210 3324 3772
2200 75/65/20 1467 2094 2633 1859 2662 3243 2176 3179 3738 2431 3656 4149
2400 75/65/20 1601 2285 2873 2028 2904 3538 2374 3468 4078 2652 3989 4526
2600 75/65/20 1734 2475 3112 2197 3146 3832 2571 3757 4417 2873 4321 4904
2800 75/65/20 1868 2666 3352 2366 3388 4127 2769 4046 4757 3094 4654 5281
3000 75/65/20 2001 2856 3591 2535 3630 4422 2967 4335 5097 3315 4986 5658

n-exponent   1,30 1,31 1,31 1,28 1,33 1,33 1,28 1,35 1,34 1,27 1,37 1,35
90/70/20°C   845 1209 1527 1073 1542 1889 1259 1848 2187 1410 2134 2438

Water capacity and weight

weight: kg/m

type 358 502 646 790
11 16,71 22,99 29,29 33,55
21 26,10 36,14 46,18 54,19
22 30,89 42,96 55,05 63,09

volume: l/m

type 358 502 646 790
11 2,79 3,87 4,99 6,12
21 5,55 7,77 9,99 12,22
22 5,55 7,77 9,99 12,22

Types of connections

ANarbonne H without built-in valve

Brackets

B = Hauteur; C = Longueur

From length of 2200 mm: 3 hanging strips

X = 220 for heights of 358 and 502 mm
Z = B - 300 mm for heights of 358 end 502 mm

X = 420 for heights of 646 and 790 mm
Z = B - 500 mm vfor heights of 646 end 790 mm

Type 11
a: 86 mm
b: 42,5 mm
c: 18 mm
Type 21
a: 133,5 mm
b: 87 mm
c: 40,5 mm
Type 22
a: 133,5 mm
b: 87 mm
c: 40,5 mm

Our radiators are guaranteed for a period of 10 years against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. This guarantee does not apply to defects caused by installation errors or factors external to the radiators (water quality, oxygen-premeable pipes,…). In the event of raw materials defects or manufacture defects recognised by the N.V. RADSON, the buyer will be entitled only to demand repair or replacement of the defective parts. It is explicitly agreed that the N.V. RADSON is not obliged to any damages, either for personal accidents or for damage to other goods or for loss of profit.

Our 10 year warranty is only valid for purchases done since January 1, 2007.
