Narbonne V

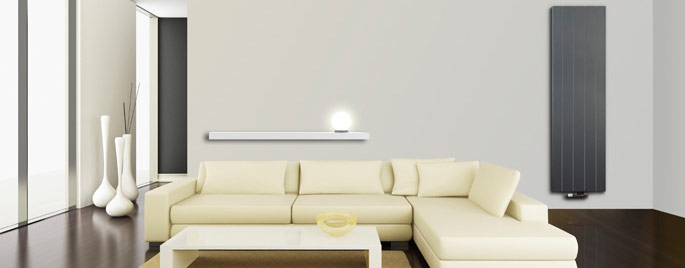

Vertical design radiators - Narbonne V

A discrete radiator with rounded edges. Vertical installation of the elements.

+

Information:

Heights (mm) 1200 - 1600 - 1800 - 2000 – 2200 mm
Lengths (mm) 286 mm (4 elements) up to and including 862 mm (12 elements)
Connections 2 x G 1/2" IG.
Installation Welded-on hanging strips on the back side of the radiator for adjustable wall brackets.
Accessories The blind stop and rotating airvent are already mounted in the radiator.
Packaging The radiators are protected with cardboard. The whole package is shrink-wrapped.
Guarantee Radson offers a 10-year guarantee of quality on its entire selection of radiators and floor-heating systems!
Types 11 and 21

Radiators types

Type 11

Type 21

Heat outputs and dimensions

  Height 1200 mm 1600 mm 1800 mm 2000 mm 2200 mm
  Type 11 21 11 21 11 21 11 21 11 21
Length + elements Watt
286 75/65/20 441 692 566 911 632 1026 701 1147 773 1274
358 75/65/20 552 867 708 1140 791 1285 877 1436 967 1595
430 75/65/20 663 1041 851 1369 950 1543 1054 1725 1161 1916
502 75/65/20 774 1215 993 1598 1109 1801 1230 2014 1356 2236
574 75/65/20 885 1390 1136 1828 1268 2060 1406 2303 1550 2557
646 75/65/20 995 1564 1278 2057 1427 2318 1583 2592 1745 2879
718 75/65/20 1106 1738 1421 2286 1586 2576 1759 2881 1939 3199
790 75/65/20 1217 1913 1563 2515 1745 2835 1936 3169 2134 3520
862 75/65/20 1328 2087 1706 2745 1904 3093 2112 3458 2328 3840

n-exponent   1,36 1,42 1,37 1,40 1,37 1,40 1,36 1,38 1,34 1,36
90/70/20°C   1976 3136 2540 4110 2835 4631 3139 5160 3449 5709

Water capacity and weight

weight : kg/m

type 1200 1600 1800 2000 2200
11 48,65 63,39 68,53 73,69 78,83
21 79,88 104,37 114,39 124,42 134,44

volume : l/m

type 1200 1600 1800 2000 2200
11 8,59 11,37 12,47 13,85 15,24
21 17,19 22,74 24,34 27,71 30,48

Types of connections

Mid connection with supply left and return right
The radiator is not reversible top/ bottom

Brackets

B = Height; C = Length

X = 71 for lengths of 286 end 358 mm
X = 107 for lengths of 430 to 862 mm

wall bracket

Type 11
a: 86 mm
b: 42,5 mm
c: 18 mm
Type 21
a: 133,5 mm
b: 87 mm
c: 40,5 mm

Our radiators are guaranteed for a period of 10 years against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. This guarantee does not apply to defects caused by installation errors or factors external to the radiators (water quality, oxygen-premeable pipes,…). In the event of raw materials defects or manufacture defects recognised by the N.V. RADSON, the buyer will be entitled only to demand repair or replacement of the defective parts. It is explicitly agreed that the N.V. RADSON is not obliged to any damages, either for personal accidents or for damage to other goods or for loss of profit.

Our 10 year warranty is only valid for purchases done since January 1, 2007.
