Vertical design radiators

Tinos

Vertical design radiators - Tinos

Clean edges and straight lines. The Tinos is the epitome of design, and the closest we have come to what might be called ´radiant art´. Mounted just 10mm from the wall, the Tinos is an inobtrusive thing of beauty, which can be tailored to meet your unique requirements in size, colour and finish.
+

Information:

Heights (mm)

1800 – 1950 - 2100

Lengths (mm)

325 – 475 – 625 - 775

Fittings

6 x ؽ » (15/21). Other fittings not available.

Installation

2 vertical MCW-V wall brackets.

Accessories

Accessories included: wall brackets, 1 rotating air vent, 3 blind stops, screws and plugs.

Packaging The radiators are factory packed in a heat shrinkable film. The radiators corners are protected with plastic covering.
Guarantee Radson offers a 10-year guarantee of quality on its entire selection of radiators and floor-heating systems!
Types Type 11 -  Type 21

Radiators types

Type 11 (325)

Type 11(475/625/775)

Type 21 (325)

Type 21 (475/625/775)

Heat outputs and dimensions

Type 11
Length Watt Height
1800 1950 2100
325 75/65/20 653 720

45/35/20 196 225
475 75/65/20 976 1056

45/35/20 295 318
625 75/65/20 1298 1393 1429

45/35/20 394 710 439
775 75/65/20
1729 1749

45/35/20
483 532
Type 21
Length Watt Height
1800 1950 2100
325 75/65/20 886 936

45/35/20 257 271
475 75/65/20 1329 1405

45/35/20 386 406
625 75/65/20 1772 1873 1957

45/35/20 514 542 561
775 75/65/20
2341 2446

45/35/20
677 701

Emissions calorifiques avec raccordement du bas selon EN442

Water capacity and weight

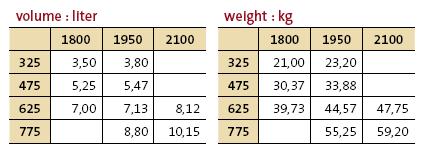

Type 11

Volume: liter

1800 1950 2100
380 3,50 3,80
530 5,25 5,47
680 7,00 7,13 8,12
830 8,80 10,15

Weight: kg

1800 1950 2100
380 21,00 23,20
530 30,37 33,88
680 39,73 44,57 47,75
830 55,25 59,20

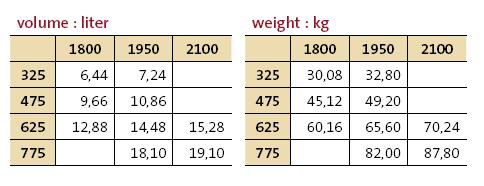

Type 21

Volume: liter

1800 1950 2100
405 6,44 7,24
555 9,66 10,86
705 12,88 14,48 15,28
855 18,10 19,10

Weight: kg

1800 1950 2100
405 30,08 32,80
555 45,12 49,20
705 60,16 65,60 70,24
855 82,00 87,80

Types of connections

Other connections are not possible.

Brackets

Type 21 (325)

Type 21 (475/625/775)

Type 21 (325)

Type 21 (475/625/775)

Our radiators are guaranteed for a period of 10 years against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. This guarantee does not apply to defects caused by installation errors or factors external to the radiators (water quality, oxygen-premeable pipes,…). In the event of raw materials defects or manufacture defects recognised by the N.V. RADSON, the buyer will be entitled only to demand repair or replacement of the defective parts. It is explicitly agreed that the N.V. RADSON is not obliged to any damages, either for personal accidents or for damage to other goods or for loss of profit.

Our 10 year warranty is only valid for purchases done since January 1, 2007.
