Narbonne H
De Narbonne designradiator valt op door zijn modulaire constructie
- Veelzijdige installatie
- Modern ontwerp
- Groottevariatie
- Warmte-efficiëntie
- Aanpasbare kleuren
Productbeschrijving

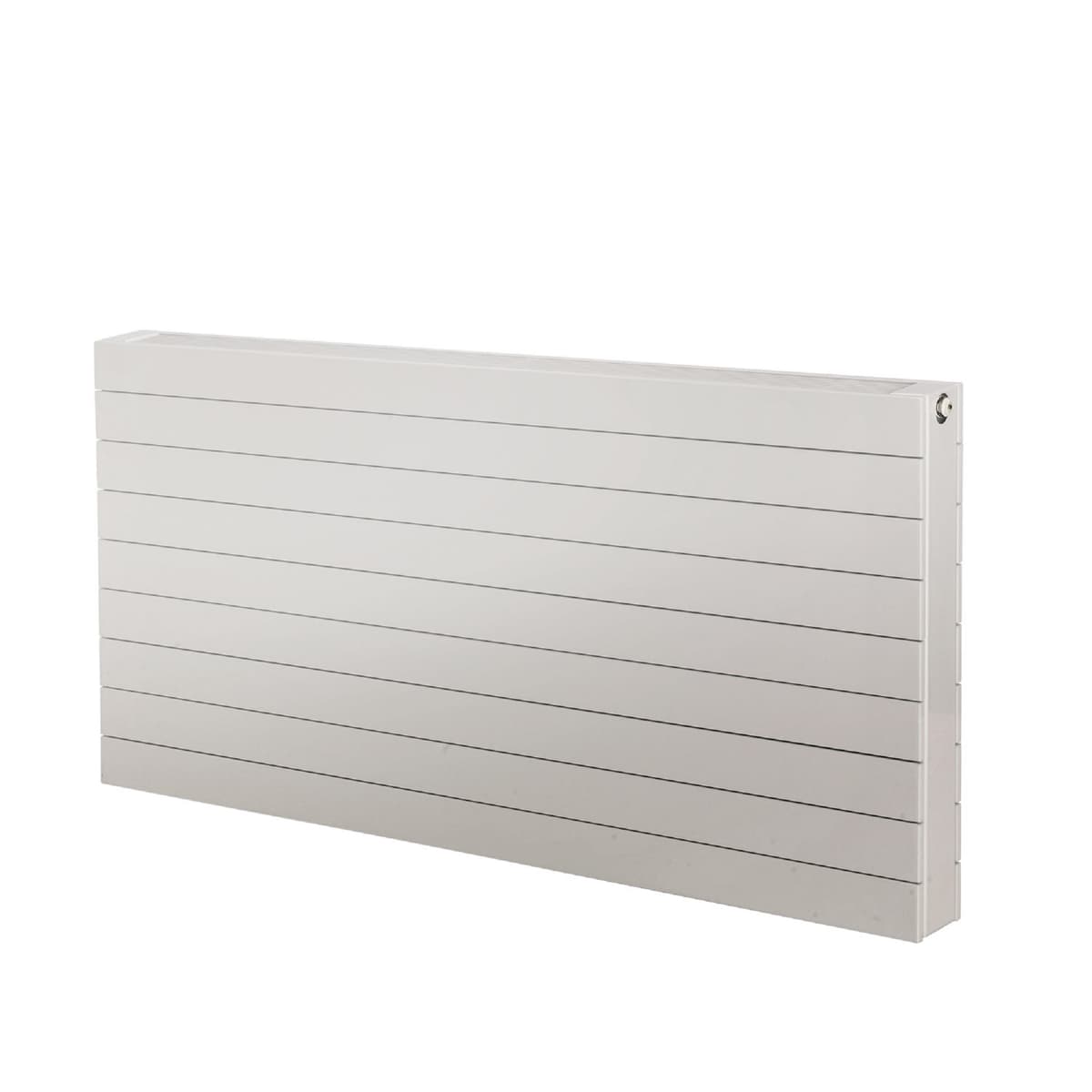

De Narbonne paneelradiator biedt dankzij zijn modulaire opbouw van horizontale vlakke profielen een uiterst grote veelzijdigheid. Hij is standaard voorzien van zijpanelen en een decoratieve bovenkap en kan uiterst nauwkeurig ingesteld worden dankzij het Flamingo inzetstuk, dat een nog preciezere instelling van het gewenste debiet mogelijk maakt.
Technische specificaties
| ETIM-klasse | EC011023 - Buisradiator |
|---|---|
| Hoogte [mm] | 358 - 790 |
| Lengte [mm] | 500 - 3000 |
| Diepte [mm] | 68 - 93 |
| Warmteafgifte EN 442 20°C - 55/45 [W] | 172 - 2756 |
| Warmteafgifte EN 442 20°C - 75/65 [W] | 334 - 5658 |
| N-exponent | 1.2959 - 1.4083 |
| Max. werkdruk [bar] | 5 |
| Waterinhoud [l] | 0 - 25.97 |
| Watt Per Meter [W/m] | 667 - 1886 |
| Factor K | 2.096 - 23.433 |
| Watt Absoluut [W] | 0 |
| Warmteafgifte EN 442 20°C - 45/35 [W] | 99 - 1595 |
| Warmteafgifte EN 442 20°C - 90/70 [W] | 423 - 7237 |
| Montagerichting | Horizontaal |
| Watergehalte per meter [l] | 2.79 - 12.22 |
| Gewicht [kg] | 8.355 - 189.18 |
| Gewicht per meter [kg] | 16.71 - 63.09 |
Berekeningen
Artikelen
| Artikelcode | Artikelbeschrijving | Warmteafgifte EN 442 20°C - 55/45 [W] | Hoogte [mm] | Lengte [mm] | Diepte [mm] | Waterinhoud [l] | Gewicht [kg] | CO2/Kg equivalent per kg materiaal |
|---|---|---|---|---|---|---|---|---|
| NH11358050018 | NARBONNE H type 11 358 500 18 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358050032 | NARBONNE H type 11 358 500 32 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358050037 | NARBONNE H type 11 358 500 37 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358050062 | NARBONNE H type 11 358 500 62 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358050067 | NARBONNE H type 11 358 500 67 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358050081 | NARBONNE H type 11 358 500 81 | 172 | 358 | 500 | 68 | 1.38 | 8.355 | - |
| NH11358060018 | NARBONNE H type 11 358 600 18 | 206 | 358 | 600 | 68 | 1.66 | 10.026 | - |
| NH11358060032 | NARBONNE H type 11 358 600 32 | 206 | 358 | 600 | 68 | 1.66 | 10.026 | - |
| NH11358060037 | NARBONNE H type 11 358 600 37 | 206 | 358 | 600 | 68 | 1.66 | 10.026 | - |
| NH11358060062 | NARBONNE H type 11 358 600 62 | 206 | 358 | 600 | 68 | 1.66 | 10.026 | - |
